Bitcoin Miner S19k Pro: Power Requirements and Compatibility Guide for Optimal Mining Performance
Introduction
The Bitcoin Miner S19k Pro by Bitmain is one of the most advanced and efficient ASIC miners available today, offering a hashrate of 120 TH/s with an impressive power efficiency of 23 J/TH. Designed for mining SHA-256-based cryptocurrencies like Bitcoin (BTC), Bitcoin Cash (BCH), and Bitcoin SV (BSV), this miner is built for high performance, reliability, and profitability.
However, to maximize its potential, miners must understand its power requirements, electrical compatibility, and setup considerations. This guide provides a detailed breakdown of the S19k Pro’s power needs, ensuring smooth integration into existing mining farms or home setups.

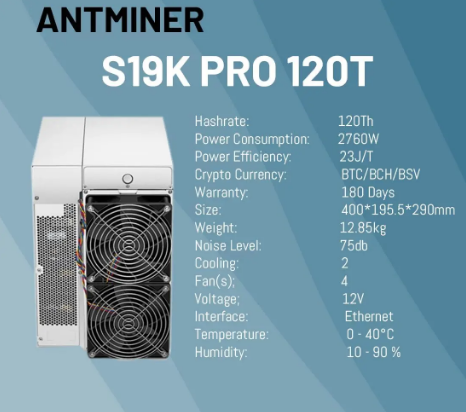

Power Requirements of the S19k Pro
1. Voltage and Frequency Specifications
The S19k Pro operates within the following electrical parameters:
- Input Voltage: 200–240V AC
- Frequency: 47–63 Hz
- Power Consumption: ~2760W (at the wall)
Unlike some older miners that support 110V or dual-voltage operation, the S19k Pro requires a 200–240V power supply. This means:
- Standard 110V household circuits (common in North America) are insufficient—miners must use 220–240V circuits (such as those used for dryers or industrial equipment).
- Three-phase power setups (common in large mining farms) are compatible, but each miner must still receive 200–240V per unit.
2. Power Supply Unit (PSU) Compatibility
The S19k Pro does not include an integrated PSU, meaning miners must pair it with a compatible high-efficiency power supply. Key considerations:
- Recommended PSUs:
- Bitmain APW12 (officially recommended)
- HP12 3500W PSU (from Bitmain)
- Third-party alternatives from brands like Parallel Miner, EVGA, or Corsair (must support 200–240V input and 12V output).
- Minimum PSU Wattage: At least 3000W to handle peak loads.
- Connector Type: Standard 6-pin PCIe or 10/12-pin mining PSU connectors (depending on the model).
#### Why PSU Selection Matters
- Underpowered PSUs can cause instability, reduced hashrate, or hardware damage.
- High-efficiency PSUs (80+ Platinum or Titanium-rated) minimize energy waste, improving profitability.
3. Electrical Circuit Planning
Each S19k Pro consumes ~2760W, meaning:
- At 220V: ~12.5A per miner.
- At 240V: ~11.5A per miner.
#### Circuit Load Calculations
- North American 220V/30A Circuit: Can support 2x S19k Pro miners (since 30A × 80% safety margin = 24A usable).
- European 230V/16A Circuit: Can support 1 miner per circuit (16A × 230V = 3680W, but derating to ~80% = 2944W).
Pro Tip: Avoid daisy-chaining multiple miners on a single circuit—overloading can trip breakers or cause fire hazards.
Compatibility with Mining Setups
1. Home Mining vs. Large-Scale Farms
- Home Miners: Need dedicated 220–240V circuits (like NEMA 6-20 or 6-30 outlets).
- Industrial Farms: Require PDUs (Power Distribution Units) and three-phase power setups for scalability.
2. Cooling and Environmental Factors
- Operating Temperature: 0°C to 40°C (optimal range: 15°C–30°C).
- Noise Level: ~75 dB—not suitable for residential areas without soundproofing.
- Ventilation Needs: Requires strong airflow (industrial fans or immersion cooling for large farms).
3. Network and Software Setup
- Ethernet Connection: Uses RJ45 (10/100M) for pool connectivity.
- Monitoring & Firmware:
- Bitmain’s official firmware allows overclocking (with risks).
- Third-party firmware (Braiins OS, Vnish) can improve efficiency.
Advantages of the S19k Pro in Real-World Mining
1. High Profitability Due to Efficiency
- 23 J/TH efficiency outperforms older models (e.g., S19j Pro at 29.5 J/TH).
- Lower electricity costs = higher ROI in competitive mining environments.
2. Reliability & Warranty Protection
- 365-day warranty from Bitmain (covers defects, shipping for replacements).
- Modular design simplifies repairs (fans, hashboards replaceable).
3. Future-Proof for Bitcoin Halving
- Post-2024 halving, only the most efficient miners will remain profitable—S19k Pro is well-positioned.
Final Recommendations
- For Home Miners: Ensure proper 220V wiring, cooling, and noise management.
- For Farms: Use industrial PDUs, three-phase power, and immersion cooling for scalability.
- PSU Choice: Stick with Bitmain APW12 or high-efficiency alternatives.
The Bitcoin Miner S19k Pro is a top-tier ASIC—but proper power setup is critical for maximizing returns. By following these guidelines, miners can ensure optimal performance, longevity, and profitability.
