How to Install Bitcoin Miner S21 XP in a Mining Rig?
Cryptocurrency mining has evolved significantly over the years, with miners constantly seeking more efficient and powerful hardware to maximize their returns. The Bitcoin Miner S21 XP by Antminer is a prime example of this advancement, offering a combination of high hashrate, energy efficiency, and user-friendly features. Whether you’re a seasoned miner or a newcomer to the field, installing the S21 XP correctly is crucial to ensuring optimal performance and longevity. This guide will walk you through the installation process, highlighting key considerations and practical tips to help you get the most out of your mining rig.

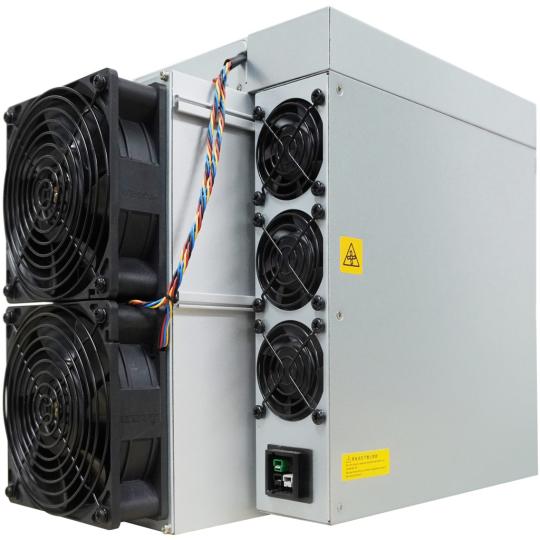

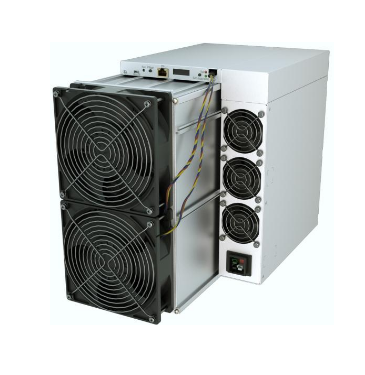

Introducing the Bitcoin Miner S21 XP
Before diving into the installation process, it’s essential to understand what makes the Bitcoin Miner S21 XP a standout choice for cryptocurrency mining. Designed by Antminer, a trusted leader in the industry, the S21 XP is built for the SHA256 algorithm, making it ideal for mining Bitcoin (BTC), Bitcoin Cash (BCH), and Bitcoin SV (BSV).
With a typical hashrate of 270 TH/s (±3%), the S21 XP delivers exceptional mining power, ensuring you stay competitive in today’s dynamic crypto landscape. Its power efficiency of 13.5 J/TH (±5%) at 25°C sets it apart from many competitors, reducing energy consumption and operational costs. Additionally, the miner’s compact design (449 x 219 x 293 mm) and robust construction (18.7 kg) make it adaptable to various mining environments, from large-scale farms to home setups.
Pre-Installation Preparation
1. Assess Your Mining Environment
The S21 XP is designed to operate in diverse conditions, with a temperature range of -20°C to 45°C and humidity tolerance of 10% to 90% (non-condensing). However, proper ventilation and cooling are critical to maintaining optimal performance. Ensure your mining space has adequate airflow and consider installing exhaust fans or air conditioning if necessary.
2. Verify Power Supply Compatibility
The S21 XP operates within an input voltage range of 220~277 Volts and a frequency range of 50~60 Hz. Ensure your power supply meets these requirements to avoid damage to the miner. Investing in a high-quality PSU (Power Supply Unit) with sufficient wattage is also recommended to support the miner’s power demands.
3. Prepare Networking Equipment
The S21 XP uses a standard RJ45 Ethernet 10/100M network connection for communication. Ensure you have a reliable internet connection and a router or switch available to connect the miner to your network.
4. Gather Tools and Accessories
While the S21 XP is relatively straightforward to install, having the right tools on hand can simplify the process. You’ll need:
- Screwdrivers (Phillips and flathead)
- Ethernet cable
- Power cables compatible with your PSU
- Anti-static wrist strap (optional but recommended)
Step-by-Step Installation Guide
Step 1: Unbox and Inspect the Miner
Carefully unbox the S21 XP and inspect it for any visible damage during shipping. Ensure all components, including the miner, power cables, and accessories, are present. If you notice any issues, contact your supplier immediately.
Step 2: Position the Miner
Place the S21 XP in your designated mining location. Its compact design allows for flexibility in placement, but ensure there’s sufficient space around the unit for airflow. Avoid stacking miners too closely together, as this can lead to overheating.
Step 3: Connect the Power Supply
Connect the PSU to the miner using the provided power cables. Double-check that the voltage and frequency settings match the miner’s specifications. Once connected, plug the PSU into a grounded electrical outlet.
Step 4: Set Up the Network Connection
Use an Ethernet cable to connect the S21 XP to your router or switch. This will allow the miner to communicate with your mining pool and receive work assignments. Ensure the connection is secure and free from interference.
Step 5: Power On the Miner
Turn on the PSU and power up the S21 XP. The miner will initialize and begin searching for a network connection. This process may take a few minutes, so be patient.
Step 6: Configure the Miner
Access the miner’s web interface by entering its IP address into your browser’s address bar. Log in using the default credentials (usually “root” for both username and password) and configure the miner with your mining pool details, including the pool URL, worker name, and password.
Step 7: Monitor and Optimize
Once configured, the S21 XP will begin mining. Use the miner’s dashboard to monitor its performance, including hashrate, temperature, and power consumption. Adjust fan speeds or cooling solutions as needed to maintain optimal operating conditions.
Practical Tips for Maximizing Performance
- Regular Maintenance: Clean the miner’s fans and vents periodically to prevent dust buildup, which can impede airflow and cause overheating.
- Firmware Updates: Check for firmware updates from Antminer regularly to ensure your miner is running the latest software for improved performance and security.
- Power Management: Use a wattmeter to monitor power consumption and ensure your electrical setup can handle the miner’s load.
- Noise Considerations: The S21 XP’s fans can be loud, so consider soundproofing your mining space if noise is a concern.
- Backup Internet Connection: A stable internet connection is crucial for continuous mining. Consider setting up a backup connection to minimize downtime.
Why Choose the Bitcoin Miner S21 XP?
The S21 XP isn’t just another mining device; it’s a strategic investment designed to deliver long-term value. Here’s why it stands out:
- Exceptional Reliability: Backed by Antminer’s 365-day warranty, the S21 XP offers peace of mind and dependable performance.
- Future-Proof Design: With its high hashrate and energy efficiency, the S21 XP is well-equipped to adapt to the evolving demands of cryptocurrency mining.
- User-Friendly Features: From easy maintenance to seamless network integration, the S21 XP is designed with the user in mind.
- Global Compatibility: Its wide input voltage range and adaptability to various environments make it suitable for miners worldwide.
Conclusion
Installing the Bitcoin Miner S21 XP is a straightforward process that can significantly enhance your cryptocurrency mining capabilities. By following this guide and leveraging the miner’s advanced features, you can optimize your setup for maximum efficiency and profitability. Whether you’re scaling up an existing operation or starting a new mining venture, the S21 XP is a powerful tool that delivers consistent results in today’s competitive crypto landscape. Happy mining!
